ABB 5SHX1960L0004 Industrial Power Module Medium Voltage Drive ABB

The ABB 5SHX1960L0004 Industrial Power Module Medium Voltage Drive ABB is a high-performance power semiconductor module engineered for megawatt-scale power conversion systems. Combining the high-voltage blocking capability of thyristors with the fast switching speed of transistors, it handles high voltage and high current with low-loss switching, ensuring reliable power conversion for industrial automation equipment under demanding site conditions.

Key Specifications:

• Brand: ABB
• Model: 5SHX1960L0004
• Type: High Power IGCT / IGBT Semiconductor Module
• Rated Voltage: 6000 V (repetitive peak off-state)
• Rated Current: 1960 A (continuous on-state)
• Peak Surge Current: 6000 A (10 ms, non-repetitive)
• Switching Technology: Fast gate-commutated turn-off, snubberless operation
• Cooling Method: Press-pack double-sided cooling, water-cooled
• Package: Press-pack ceramic housing
• Operating Temperature: -20°C to +60°C
• Humidity Range: 5% to 95% non-condensing
• Certifications: CE, RoHS, UL

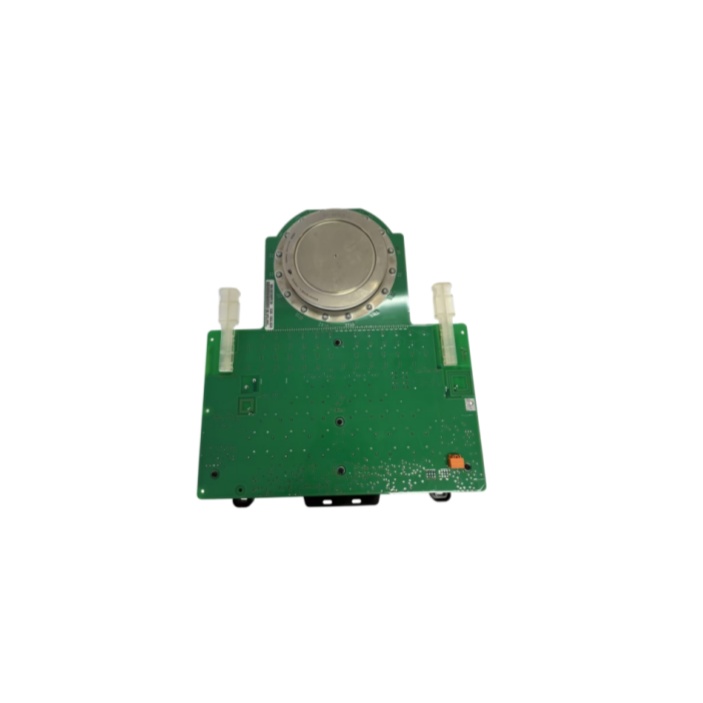

Product Image

ABB 5SHX1960L0004 Industrial Power Module Medium Voltage Drive ABB is a high-reliability power semiconductor module engineered for demanding high-voltage power conversion. Operating at the heart of the converter power stage, it combines thyristor-like conduction performance with transistor-like switching speed, delivering precise energy control with minimal losses in megawatt-scale industrial applications. The rugged press-pack construction with double-sided water cooling ensures superior thermal stability, allowing dependable operation under continuous heavy load and high ambient temperatures. Advanced gate-commutated turn-off technology enables snubberless operation, simplifying system design and improving overall reliability. The ABB 5SHX1960L0004 conforms to rigorous industrial standards, making it a preferred building block for high-voltage, high-current power conversion systems.
