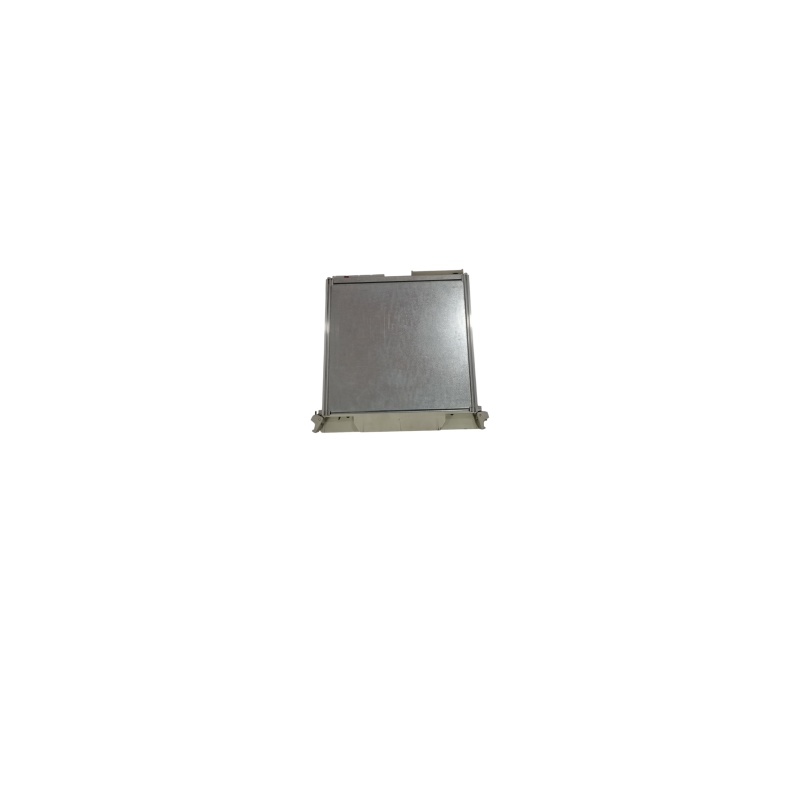

ABB 3BHB004027R0101 Gate Drive Board for ACS6000

The ABB 3BHB004027R0101 Gate Drive Board for ACS6000 is the IGCT gate-drive control board of the ABB ACS6000 / ACS8000 medium-voltage drive family (Switzerland). It generates, amplifies, and distributes the gate pulses for high-voltage IGCT power semiconductors (e.g., 5SHX0445D0001, 4500 V / 6000 V class), with fiber-optic signal transmission for galvanic isolation and EMI immunity between the control stage and the power stage.
Key Features

1. IGCT/IGBT gate-drive control board for ABB ACS6000 / ACS8000 medium-voltage drives
2. Gate pulse generation, amplification, distribution, protection, and feedback in one board
3. Fiber-optic signal interface — full galvanic isolation between control and power stages
4. Drives 4500 V / 6000 V class IGCT power devices (e.g., 5SHX0445D0001)
5. 24 V DC control-side supply
6. Cabinet-mounted, fixed installation (IP20 class per service data)
7. Broad operating temperature range: -40…+70 °C (service data)
8. Swiss-made (ABB Switzerland)

1. Type Designation: GVC700AE01
2. Order Code: 3BHB004027R0101
3. Product Type: IGCT gate-drive control board (gate drive unit)
4. System: ABB ACS6000 / ACS8000 medium-voltage drive series
5. Function: Gate pulse generation, amplification, distribution, protection, and feedback
6. Power Devices Driven: IGCT / IGBT, 4500 V / 6000 V class (e.g., 5SHX0445D0001)
7. Control Supply: 24 V DC (control side)
8. Signal Interface: Fiber optic (galvanic isolation, high EMI immunity)
9. Mounting: Fixed installation in the drive cabinet / subrack
10. Operating Temperature: -40…+70 °C (service data)
11. Weight: approx. 0.31 kg (service data)
12. Origin: Switzerland (ABB)

1. De-energize the drive and verify DC-link capacitors are discharged before handling the board — the IGCT power stage holds lethal voltages.
2. Install the GVC700AE01 in its designated slot in the ACS6000/ACS8000 drive cabinet; seat the backplane connector fully.
3. Connect the fiber-optic links to the corresponding IGCT gate units per the drive wiring diagram; verify optical power / link status after power-up.
4. Confirm the control-side 24 V DC supply is within tolerance before commissioning.
5. After installation, run the drive's diagnostic self-test and verify gate-drive feedback signals before returning the converter to service.

1. What does the GVC700AE01 do? It is the gate-drive control board of the ABB medium-voltage drive: it generates and distributes the gate pulses to the IGCT power semiconductors, amplifies the drive signals, provides protection, and returns status/feedback to the control system — all over fiber-optic links for high-voltage isolation.
2. Which drives use this board? ABB ACS6000 and ACS8000 medium-voltage drives (and related ABB MV drive platforms using 4500 V / 6000 V IGCT devices).
3. Why fiber-optic signals? To provide full galvanic isolation and high EMI immunity between the low-voltage control stage and the high-voltage IGCT power stage.
4. What is the order code? 3BHB004027R0101 is the order code for the GVC700AE01; the market also associates 3BHB003152P104 with this board — confirm against the drive's parts list before ordering.
