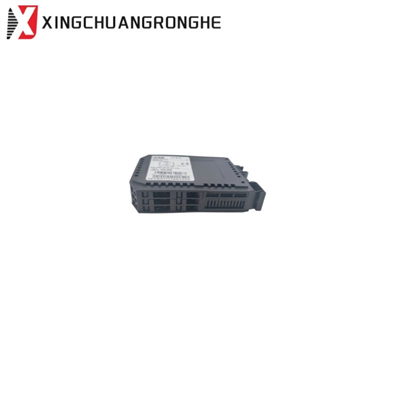

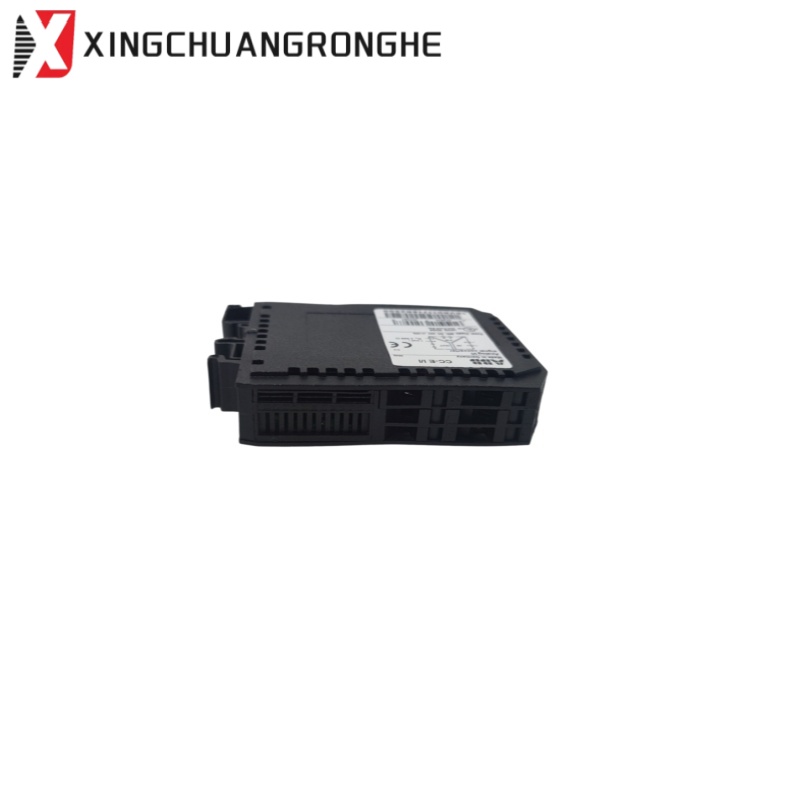

RH914XS FBM237 IA Series 4 to 20 mA Output Module

RH914XS FBM237 IA Series 4 to 20 mA Output Module is a channel-isolated, 8-channel analog output module in the Foxboro I/A Series DCS, providing 0–20.4 mA DC output signals to field devices such as valve positioners and transducers. The module delivers each channel as a fully independent, galvanically isolated circuit, with a maximum output load of 750 Ω and an output processing delay of 30 ms. It is commonly used in process control applications within power, oil, gas, chemical, and other continuous process industries.
Product Datasheet

1. Brand: Foxboro
2. Model: FBM237 (RH914XS)
3. Series: I/A Series DCS
4. Product Name: Analog Output Module
5. Channels: 8, channel-isolated
6. Output Range: 0–20.4 mA DC
7. Output Load: 750 Ω max
8. Output Processing Delay: 30 ms max
9. Power Consumption: 7 W max at 24V DC
10. Module Part No.: P0914XS (Termination Assembly: P0916CC)

1. The module is not recognized by the DCS. Check the module's seating, fieldbus connection, and system power. Verify the FBM237 is correctly configured in the I/A Series control configuration and that the installed revision is supported.
2. Analog outputs do not respond correctly. Check the output wiring, terminal assembly connections, and the connected field device. Verify the output channel is configured correctly and that the loop is not open or shorted.
3. Output readings are inaccurate or unstable. Inspect the field wiring, grounding, and shielding. Verify the output range and engineering units match the configured channel, and that the connected load does not exceed 750 Ω.
4. Can the FBM237 RH914XS replace another Foxboro analog output module? Not without verification. Compare the full part number, channel configuration, output range, termination assembly, hardware revision, and compatibility with the specific I/A Series system before replacement.

1. Isolate power and follow lockout/tagout procedures before removing or installing the module.
2. Use electrostatic discharge protection when handling electronic assemblies.
3. Verify terminal assignments and output wiring before energizing the module.
4. Do not connect field signals until the electrical ratings have been confirmed.
5. Use qualified personnel for troubleshooting and commissioning in operating process systems.

Q4:What should be checked before purchase? Verify the model label, full part number, hardware revision, termination assembly, condition, and compatibility with the specific I/A Series system.
