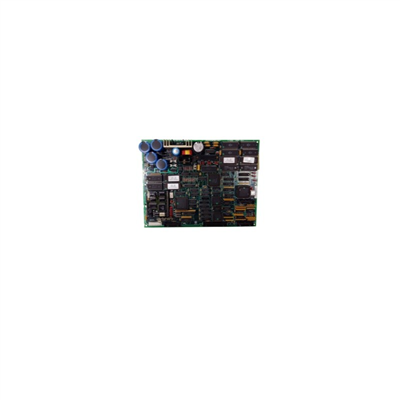

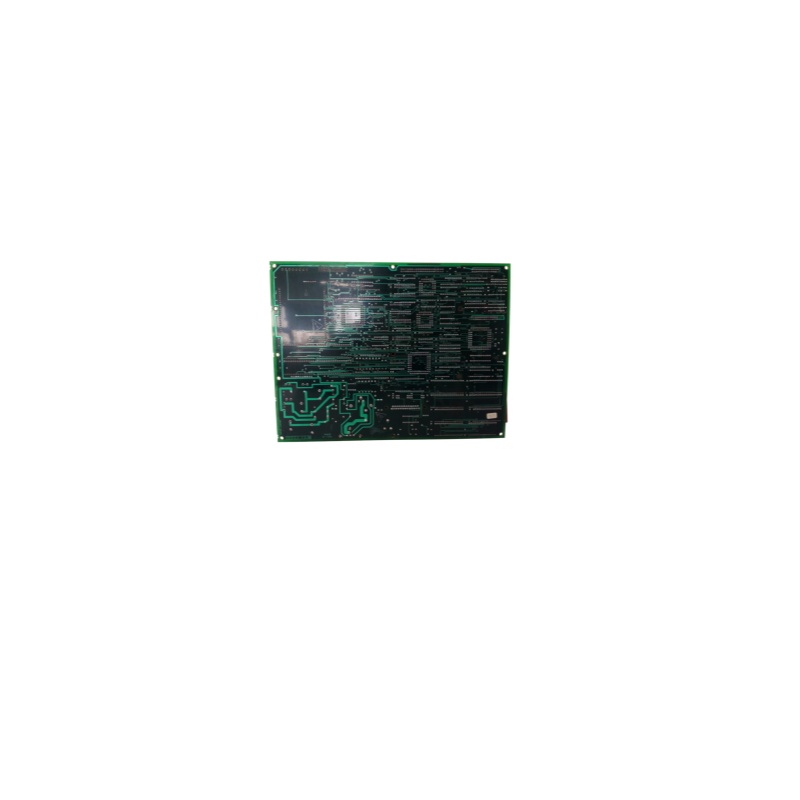

GE DS200DMCBG1AED Mark V DMCB Processor Board

The GE DS200DMCBG1AED Mark V DMCB Processor Board is the drive/excitation control processor board of the GE Speedtronic™ Mark V DS200 turbine control family (now Baker Hughes / GE Vernova). It executes real-time drive-control logic — excitation voltage regulation, gate-pulse distribution, and protection functions — and manages data exchange across the Mark V control buses, serving high-power drives and static excitation systems under the turbine control processor.
Key Features

1. Drive Master Control processor for Mark V Speedtronic turbine/drive control
2. Intel 80C186-class processor architecture (standard for Mark V DS200 processor boards)
3. Executes high-speed closed-loop drive control: field/armature current regulation, bridge firing, protection logic
4. Communicates over the Mark V internal bus system (VME-based rack / Genius I/O bus) with I/O boards, operator interface, and turbine control processor
5. On-board diagnostics reporting fault codes to the HMI
6. G1A revision adds a soldered lithium battery (approx. 10-year rating) and revised J4 connector pinout
7. Conformal-coated board for industrial environments
8. Drop-in replacement for earlier DMCB revisions (A / AKB) in Mark V panels

1. Type Designation: DS200DMCBG1AED
2. Product Type: Drive Master Control Board (DMCB) — drive control processor board
3. System: GE Speedtronic™ Mark V DS200 turbine control system
4. Processor: Intel 80C186-class (Mark V DS200 standard)
5. Memory / Storage: Flash memory for application executable; battery-backed RAM for configuration retention (per revision)
6. Bus Interface: Mark V rack backplane (VME-based); Genius I/O bus communication
7. Mounting: Dedicated processor slot in the Mark V control cabinet (above the power supply, third slot from left — per service data)
8. Protection: On-board diagnostics; conformal coating on production boards
9. Operating Environment: Industrial cabinet duty (Mark V panel ambient ratings)
10. Compatibility: Replaces earlier DMCB revisions (A, AKB) in 1990s–2000s Mark V installations
11. Origin: United States

1. De-energize the Mark V control cabinet power supply before inserting or removing the board.
2. Verify the board revision and firmware against the system's replacement guideline — earlier DMCB variants have different J4 connector pinouts (G1A revision).
3. Install the DMCB in its designated processor slot (per cabinet drawing); seat the backplane connector fully and secure the board.
4. On first power-up, check the on-board diagnostics / HMI fault codes; confirm the drive control loops (excitation, firing) are healthy before returning the unit to service.
5. Retain the original configuration/application data; the AED revision is designed to run existing Mark V application code without software changes.

1. What does the DMCB do in the Mark V system? It is the processor board for the drive/excitation control function: it runs the real-time control loops (current/flux/speed regulation, bridge firing and protection logic) and communicates with the rest of the Mark V control system over the internal bus.
2. Is the DS200DMCBG1AED compatible with older DMCB boards? Yes — it is the enhanced-executable revision of the DMCB and is backward compatible with earlier A/AKB revisions, addressing firmware reliability (flash corruption / processor lockup) issues seen in the field. Note the G1A board revision changed the J4 connector pinout, so check the cabinet wiring when replacing pre-G1A boards.
3. Which systems use this board? Mark V turbine control panels and associated drive/excitation control (static excitation, DC drive retrofits). It is a Mark V DS200 product — it is not a Mark VIe module (those use the IS2xx board family).
4. What voltage does the board need? It is powered from the Mark V rack power supply (5 V DC logic rail typical for DS200 boards); no separate field supply is required.
