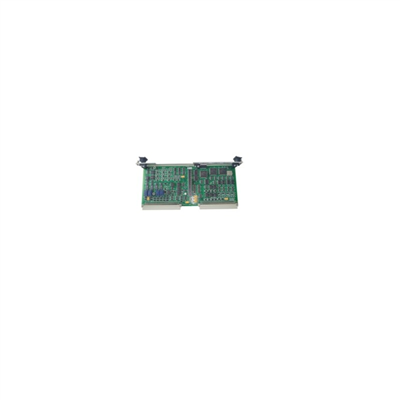

ABB 086348-001 Rack End Frame Printed Wiring Assembly

The ABB 086348-001 Rack End Frame Printed Wiring Assembly is an End Column Frame (ECF) printed wiring assembly from ABB.It serves as the end column frame component of control system racks, providing the structural and wiring interface at the end of a rack column. The compact assembly (approx. 2.1 × 12.8 × 26.2 cm, 0.22 kg) is a spare part for installed ABB control racks where the end column frame wiring assembly needs replacement or service.

Key Specifications:

• Brand: ABB
• Model: 086348-001
• Type: End Column Frame (ECF) PWA
• Product Family: End Column Frame
• Application: Control system rack end column structural/wiring assembly
• Dimensions: Approx. 2.1 × 12.8 × 26.2 cm
• Weight: Approx. 0.21–0.22 kg
• Country of Origin: Sweden

ABB 086348-001 Rack End Frame Printed Wiring Assembly is the end-column wiring assembly of an ABB control rack: it carries the interconnections and structure that close out the rack column, keeping the control system's internal wiring organized and serviceable. Because it is a mechanical/wiring assembly rather than an active I/O card, its role is best confirmed against the rack layout and ABB documentation. A spares-relevant PWA for ABB control system racks that need end column replacement.
