Original TRICONEX 2401 DO2401 Output Spare

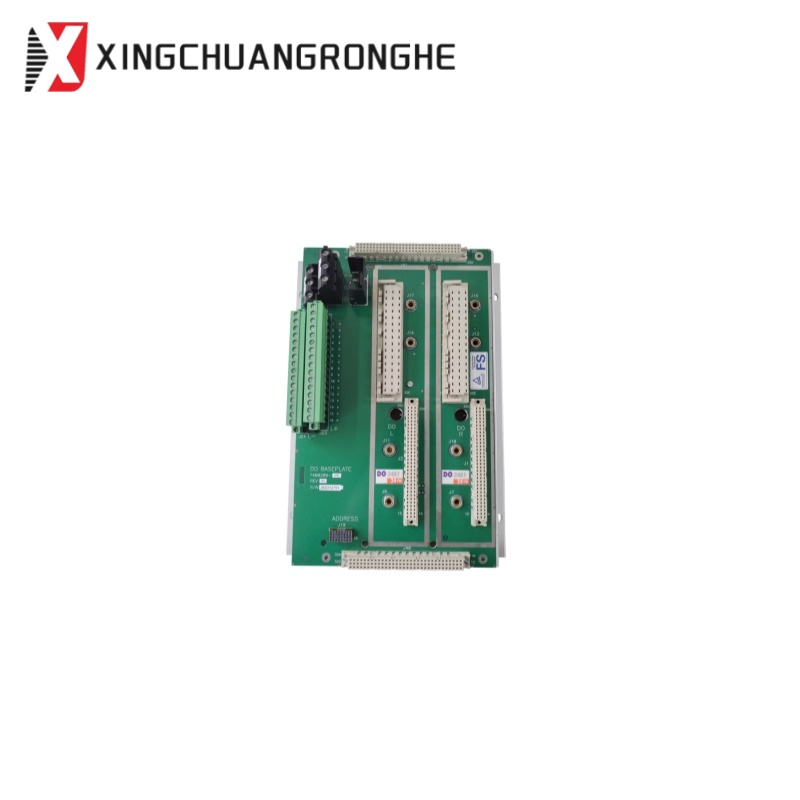

The Original TRICONEX 2401 DO2401 Output Spare is the Model 2401 digital output baseplate of the Triconex/Trident TMR safety system — the mounting baseplate for a 16-point digital output module, providing backplane connectivity and field-wiring termination for DO channels driving solenoids, relays and motor starters. Per the official Trident Planning and Installation Manual, it includes dual field-power inputs (PS1/PS2), load connections, voltage loopback and a detector function.

Key Features

1. Digital output (DO) baseplate for Triconex / Trident TMR safety systems (Model 2401)
2. Mounting baseplate for the 16-point DO module
3. Dual field-power inputs (PS1/PS2) with load +/load − connections
4. Voltage loopback and detector circuitry on the baseplate
5. TMR architecture — interfaces the logic processors to field devices (solenoids, relays, motor starters)
6. High-availability design for safety applications
7. Related high-voltage variant: Model 2402 DO baseplate kit (relay-output ETP)
8. Made in USA

1. Model: 2401 (DO2401)
2. Part Number: 7400209-030
3. Product Type: Digital output baseplate
4. System: Triconex / Trident TMR safety system (SIS)
5. Module Support: 16-point DO module
6. Field Power: Dual inputs PS1/PS2
7. Output Loads: Load + / Load − per point
8. Functions: Voltage loopback, detector
9. Output Voltage Class: 24 V DC
10. Dimensions: 10.2 × 6.3 × 3.1 in
11. Weight: 2.2 lbs
12. Related Kit: Model 2402 high-voltage DO baseplate kit — baseplate + relay-output ETP + interconnect + slot cover + interface cable (3000764-300 / 3000763-110 / 2921 / 2900 / 9106-310)
13. Origin: USA

1. What is the Model 2401? It is the digital output baseplate of the Triconex/Trident TMR safety system — the mounting baseplate for the 16-point DO module.
2. What does the baseplate provide? Backplane connectivity, dual field power (PS1/PS2), load connections, voltage loopback and detector circuitry for the DO module.
3. Is it the same as the 2402? No — the 2402 is the high-voltage DO baseplate kit (with relay-output external termination panel), per Triconex Trident product specifications.
4. Where is it made? USA.
