ABB 5SHX1960L0004 IGBT Module High Power Semiconductor ABB In Stock

The ABB 5SHX1960L0004 IGBT Module High Power Semiconductor ABB In Stock is a high-performance power semiconductor module engineered for megawatt-scale power conversion systems. Combining the high-voltage blocking capability of thyristors with the fast switching speed of transistors, it handles high voltage and high current with low-loss switching, ensuring reliable power conversion for industrial automation equipment under demanding site conditions.

Key Specifications:

• Brand: ABB
• Model: 5SHX1960L0004
• Type: High Power IGCT / IGBT Semiconductor Module
• Rated Voltage: 6000 V (repetitive peak off-state)
• Rated Current: 1960 A (continuous on-state)
• Peak Surge Current: 6000 A (10 ms, non-repetitive)
• Switching Technology: Fast gate-commutated turn-off, snubberless operation
• Cooling Method: Press-pack double-sided cooling, water-cooled
• Package: Press-pack ceramic housing
• Operating Temperature: -20°C to +60°C
• Humidity Range: 5% to 95% non-condensing
• Certifications: CE, RoHS, UL

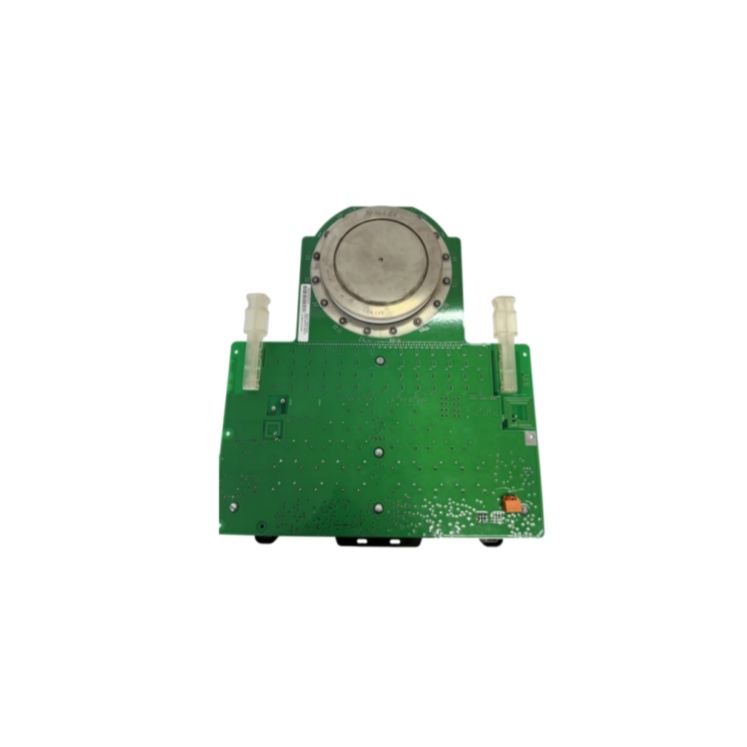

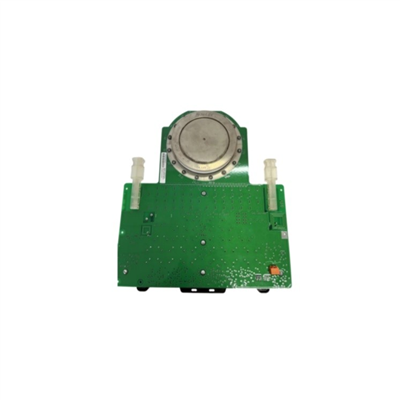

Product Image

ABB 5SHX1960L0004 IGBT Module High Power Semiconductor ABB In Stock is a reliable high-power semiconductor module built for high-integrity industrial power systems. Serving as the core switching element in medium- and high-voltage drives, inverters and rectifiers, it performs fast, precise switching actions that minimize conduction and switching losses, keeping conversion efficiency high under continuous heavy load. The press-pack design with double-sided water cooling delivers excellent thermal performance, enabling stable operation in confined, high-temperature environments while extending component service life. Integrated fault monitoring and robust construction reduce unplanned downtime and maintenance costs. The ABB 5SHX1960L0004 complies with strict industrial standards, making it a trusted power-module choice for high-voltage, high-current industrial applications.
