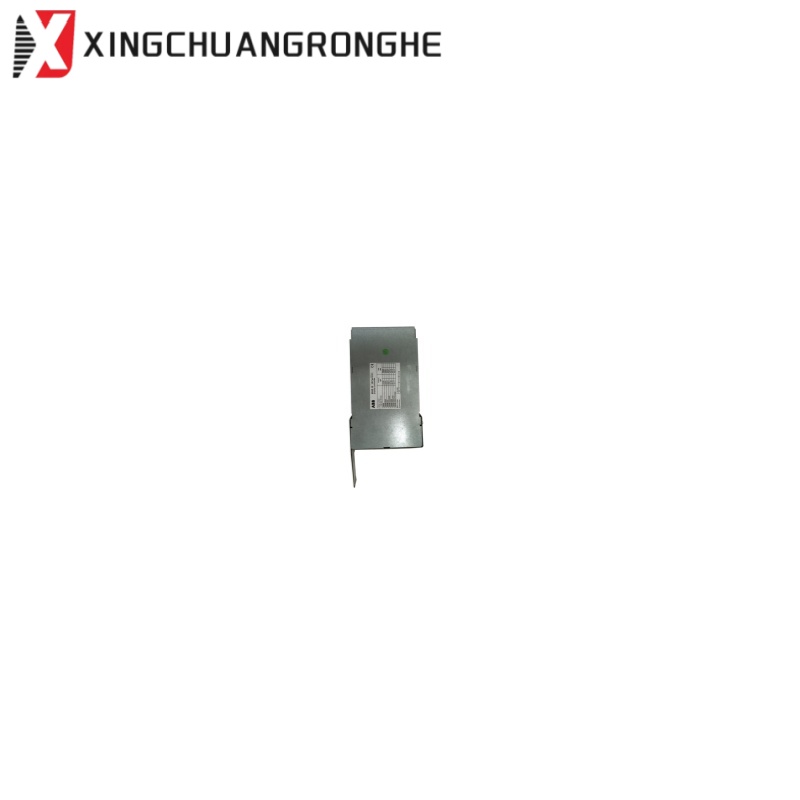

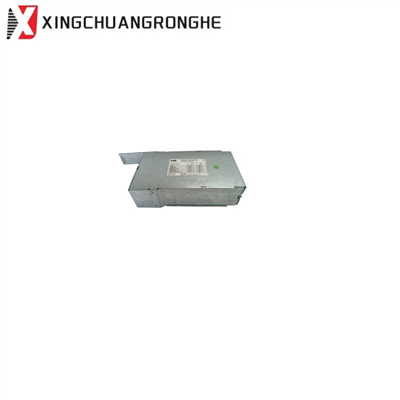

Siemens 6SE3215-8DB40 Replacement MICROMASTER Drive

The Siemens 6SE3215-8DB40 Replacement MICROMASTER Drive is the MICROMASTER Vector MMV220/3 frequency inverter — a 2.2 kW, three-phase 380–500 V AC unfiltered drive from the Siemens MICROMASTER Vector family, providing V/f and sensorless vector control with fast current limit for trip-free operation in industrial motor-drive applications.
Key Features

1. MICROMASTER Vector (MMV) frequency inverter — MMV220/3 type, unfiltered version
2. 2.2 kW constant-torque rating
3. Three-phase input 380–500 V AC ±10%, 50/60 Hz
4. Overload capability: 150% for 60 s; 200% for 3 s
5. V/f control with sensorless vector control; Fast Current Limit (FCL)
6. Built-in PID for closed-loop process control; 15 V / 50 mA sensor supply
7. RS-485 (USS protocol) — up to 31 converters on one bus
8. Operating temperature 0–50 °C
9. Compact IP20 enclosure, wall mounting

1. Order Number: 6SE3215-8DB40
2. Type Designation: MICROMASTER Vector MMV220/3 (unfiltered)
3. Product Type: Frequency inverter / AC drive
4. Input Voltage: 3 AC 380–500 V ±10%, 50/60 Hz
5. Constant Torque Rating: 2.2 kW
6. Overload: 150% for 60 s; 200% for 3 s
7. Variable Torque: N/A
8. Control: V/f + sensorless vector control, FCL
9. Communication: RS-485 USS (up to 31 nodes)
10. Dimensions: 184 × 149 × 172 mm (H×W×D)
11. Enclosure: IP20, wall mounting
12. Ambient Temperature: 0–50 °C
13. Origin: Germany (Siemens)

1. Verify the drive type (MMV220/3, 2.2 kW) and supply voltage against the nameplate before installation.
2. Mount the drive on a vertical wall/panel with adequate cooling clearance; observe ambient limit 0–50 °C.
3. Size input fuses and check motor cable lengths per the MICROMASTER Vector operating instructions.
4. Wire motor (U/V/W), control terminals (digital/analog inputs, relay outputs, RS-485) per the manual; use shielded control cable.
5. After power-up, set motor parameters and control mode via the parameter set; perform a jog test before normal operation.

1. What is the 6SE3215-8DB40? It is the Siemens MICROMASTER Vector MMV220/3 frequency inverter — 2.2 kW constant torque, three-phase 380–500 V AC, unfiltered version.
2. What is its overload capability? 150% for 60 s and 200% for 3 s.
3. What control modes does it support? V/f control and sensorless vector control, with Fast Current Limit and built-in PID (per the MICROMASTER Vector manual).
