GE DS200PCCAG1ACB Speedtronic Mark V Power Connect PC Board

The GE DS200PCCAG1ACB Speedtronic Mark V Power Connect PC Board is a high-performance power connection card designed for GE Mark V and EX2000 drive systems. It interfaces the drive control board with the SCR power bridge, delivering stable, consistent power signal transmission under tough site conditions to guarantee reliable operation of turbine and drive equipment.

Key Specifications:

• Brand: GE (General Electric)
• Model: DS200PCCAG1ACB
• Type: Power Connection Card (PCCA)
• Series: Mark V / EX2000 drive systems
• Function: Interface between drive control board and SCR power bridge
• Signal Transmission: Via pulse transformer
• Armature Voltage: 240–630 V AC (typical, incl. regenerative)
• Output Current: Max 10 A (typical)
• Auxiliary Power: +5 V DC backplane, 24 V DC I/O (typical)
• Insulation: 2000 Vrms (typical)
• Protection Features: AC/DC snubbers, conformal coated circuitry
• Operating Temperature: 0°C to +60°C

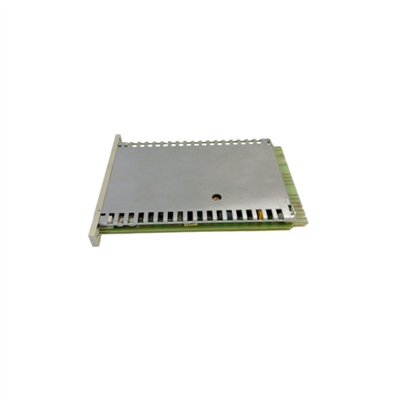

Product Image

GE DS200PCCAG1ACB Speedtronic Mark V Power Connect PC Board is a dependable power connection card engineered for stable power transfer in industrial applications. Acting as the critical link between drive control circuits and SCR power bridges, it transmits control and power signals with high consistency, maintaining stable operation even under fluctuating load and harsh plant conditions. With AC/DC snubber protection and rugged construction, it supports dependable operation of field equipment and improves overall system reliability. Built to strict industrial standards, this card ensures long-term service with reduced maintenance downtime. The GE DS200PCCAG1ACB is a trusted power connection solution for Mark V turbine and drive applications.
