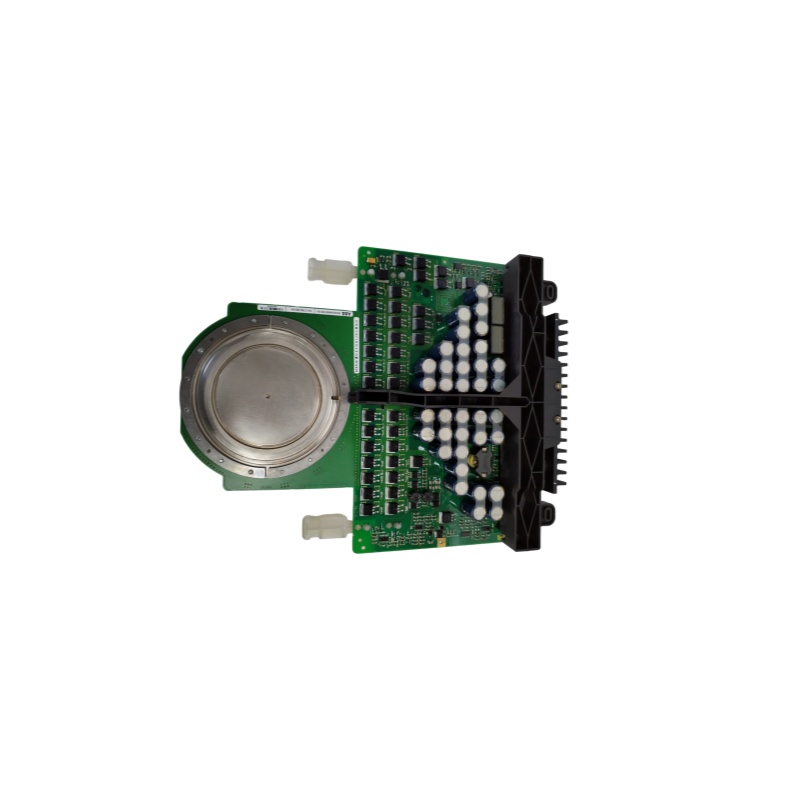

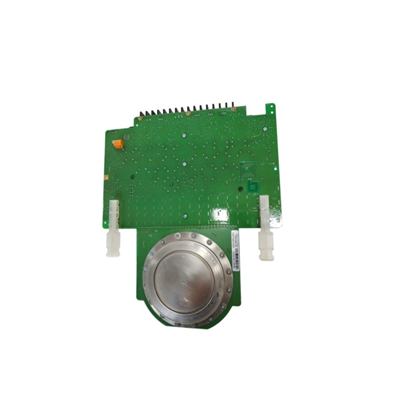

ABB 5SHX2645L0002 ABB Semiconductor IGBT Module Medium Voltage Industrial

The ABB 5SHX2645L0002 ABB Semiconductor IGBT Module Medium Voltage Industrial is a high-performance power semiconductor module engineered for high-power drive and power conversion systems. Integrating IGBT/IGCT switching technology in a rugged press-pack package, it handles high voltage and high current with fast, low-loss switching, ensuring reliable power conversion for industrial automation equipment under demanding site conditions.

Key Specifications:

• Brand: ABB
• Model: 5SHX2645L0002
• Type: High Power IGBT/IGCT Semiconductor Module
• Rated Voltage: 4500 V (repetitive peak off-state), 2800 V permanent DC link
• Rated Current: 2645 A
• Switching Technology: Fast, snubberless turn-off IGCT
• Cooling Method: Press-pack double-sided cooling, water-cooled
• Control Interface: Optical fiber control interface with status feedback
• Protection Features: High electromagnetic immunity, fault status monitoring
• Operating Temperature: -20°C to +60°C
• Humidity Range: 5% to 95% non-condensing
• Certifications: CE, RoHS, UL

ABB 5SHX2645L0002 Power Semiconductor ABB IGBT Module Medium Voltage is a high-performance power semiconductor module engineered for reliable high-voltage, high-current power conversion. It combines advanced IGBT/IGCT switching technology with rugged press-pack construction, serving as the core power element within medium-voltage drives, inverters and rectifiers. With fast, low-loss switching and excellent double-sided cooling performance, this module ensures stable operation and high system efficiency even under continuous heavy load and demanding industrial surroundings. Built-in fault monitoring and robust thermal design extend service life and reduce maintenance downtime. The ABB 5SHX2645L0002 complies with strict industrial standards, making it a preferred power-module option for high-power industrial applications.
