ABB GDD471A001 Industrial Drive System Component ABB Original

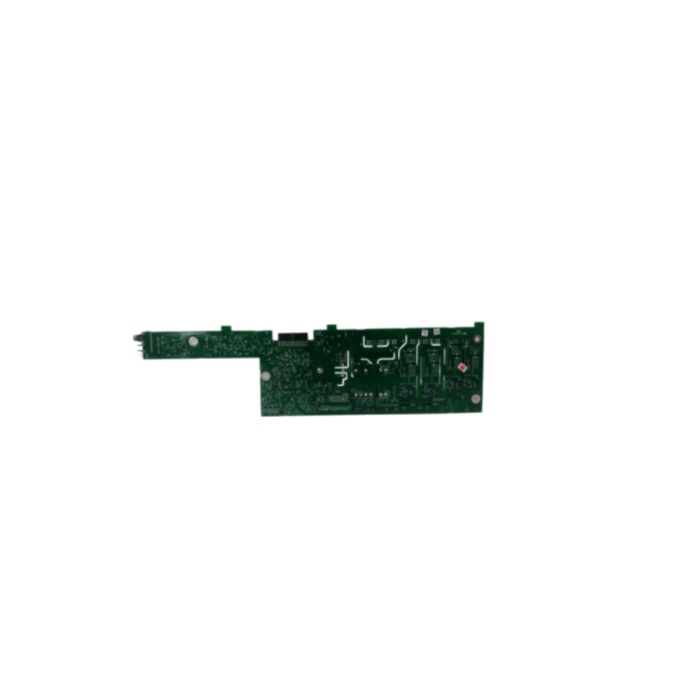

The ABB GDD471A001 Industrial Drive System Component ABB Original is a high-performance gate drive module built for high-power industrial drive systems. Operating as the link between the drive control electronics and power semiconductors, it converts low-voltage control commands into precisely timed, galvanically isolated gate pulses, guaranteeing fast, stable switching of IGBT/IGCT power stages under demanding site conditions.

Key Specifications:

Brand：ABB

Model：GDD471A001

Type：Gate Drive Unit for High Power Industrial Drives

Supply Voltage：24 V DC (±20%, from power cell supply)

Control Signal：High-speed gate drive output for IGBT/IGCT power switches

Communication Interface：Optical fiber interface (6-channel TX/RX, HFBR type) for commands and status feedback

Protection Features：Over-current and short-circuit protection, desaturation detection, fault monitoring

Input Signal Levels：Logic "1" ≥ 15 V DC; logic "0" ≤ 5 V DC

Operating Temperature：-20°C to +60°C

Humidity Range：5% to 95% non-condensing

Certifications：CE, RoHS, UL

The ABB GDD471A001 gate drive unit unites high-speed switching precision with long-service reliability. Placed directly between the drive controller and the power semiconductors, it turns control logic signals into strong, isolated gate pulses via optical links, sustaining stable switching performance even under electrical noise, vibration and temperature stress. Integrated desaturation and fault monitoring safeguard the power stage from over-current and short-circuit conditions, while the thermally efficient, space-saving layout simplifies panel design and lowers spare-part costs. Conforming to strict industrial standards, the ABB GDD471A001 delivers dependable gate drive performance for high-power industrial drive systems.
