SIEMENS 6DS1315-8AC Teleperm Voter IO Bus Module

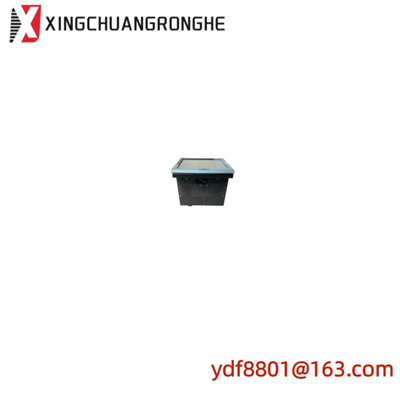

The SIEMENS 6DS1315-8AC is a compact SIPART DR20 process controller designed for single-loop closed-loop control of temperature, pressure, flow, level, and other process variables. As the standard-controller variant of the DR20 family, it combines analog current inputs, a continuous S output, and digital I/O in a DIN 43700 panel-mounted housing. It is widely used in power plants, water treatment, and process industries as a standalone PID controller or as a backup/manual-loading station in larger control schemes.

🔷Key Specifications

• Manufacturer:SIEMENS
• Order Number: 6DS1315-8AC
• Product Family: SIPART DR20 Process Controller
• Product Type: Compact digital controller (standard controller with S output)
• Analog Inputs: 2 × current inputs (4–20 mA)
• Analog Output: 1 × S output (continuous control output)
• Digital I/O: 1 × digital input, 1 × digital output
• Control Function: PID closed-loop control with auto/manual mode
• Power Supply: AC 220/240 V
• Power Consumption: 21 VA / 13 W max
• Protection Rating: IP20/30/64
• Mounting: DIN 43700 panel cut-out (compact faceplate)
• Weight: Approx. 1.0 kg

• Proven Single-Loop Control: Reliable PID control for one process variable with setpoint, manual, and auto modes selectable on the front panel.
• Compact Panel Design: Standard DIN 43700 cut-out; small faceplate saves panel space in cabinets and consoles.
• Isolated, Industry-Grade I/O: Current inputs and S output are designed for 4–20 mA process instrumentation, with digital input/output for enable, alarm, or status functions.
• Robust Construction: IP64-protected front (IP20 housing) suited to control room environments; simple mechanical configuration and parameterization.
• Long-Service Product Line: The SIPART DR20 remains a supported spare for installed process control panels, with plug-in replacement for existing DR20 units.

• Temperature, pressure, flow, and level control loops
• Manual/auto loading stations for larger control systems
• Backup controllers for DCS or PLC loops
• Industrial furnace, boiler, and heat-treatment control
